完備安全 輕巧取勝EGB-300 接地阻抗測試儀，將交流和直流接地測試整合至A4大小輕巧機身。最高 40A 電流測試能力和高度精確表現，延續華儀一貫高效可靠性能，能夠滿足家電用品、影音設備等要求嚴苛的電子設備測試。體積輕巧且具備高度擴充性，可連接 EST-300 系列耐壓測試儀并整合成五合一測試系統，兩者均可便利地安裝進2U高
咨詢電話：400-838-1718

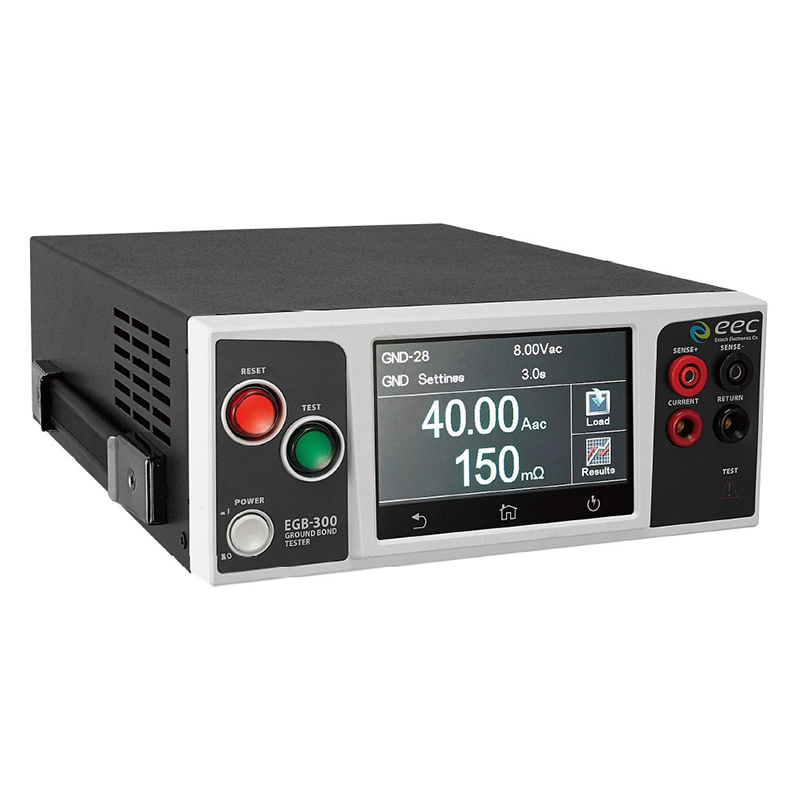

EGB-300 接地阻抗測試儀，將交流和直流接地測試整合至A4大小輕巧機身。最高 40A 電流測試能力和高度精確表現，延續華儀一貫高效可靠性能，能夠滿足家電用品、影音設備等要求嚴苛的電子設備測試。體積輕巧且具備高度擴充性，可連接 EST-300 系列耐壓測試儀并整合成五合一測試系統，兩者均可便利地安裝進2U高度的機箱中，創造完整的交流耐壓、直流耐壓、絕緣電阻、交流接地阻抗和直流接地阻抗測試解決方案。
完整交直流接地阻抗解決方案整合交流接地與直流接地測試兩項功能于一身，無須再為不同測試額外添購儀器。 |  |
 | 高效輸出，從容應對安規需求最大輸出可達40A，能滿足IEC 60601-1醫療設備、IEC 61851電動車安全等安規測試需求以及未來的標準更新。 |

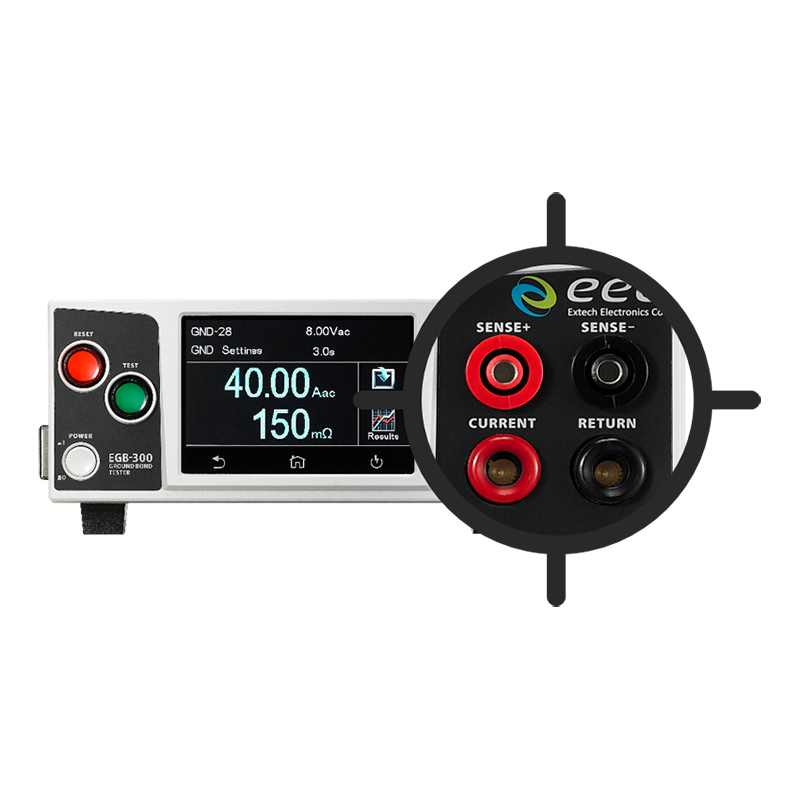

精準量測、自動設定四線量測能力可有效消除線路阻抗，讓測量結果更精準。另搭載自動Offset功能，省去繁雜的手動設定，進一步提升測試效率。 |  |
 | 更輕薄、更小巧擁有A4大的小巧尺寸及僅5公斤重的輕薄機身，是同級中最輕便小巧的接地阻抗測試器，方便攜帶且所占空間更小，提升研發實驗室等狹小空間的利用度。 |

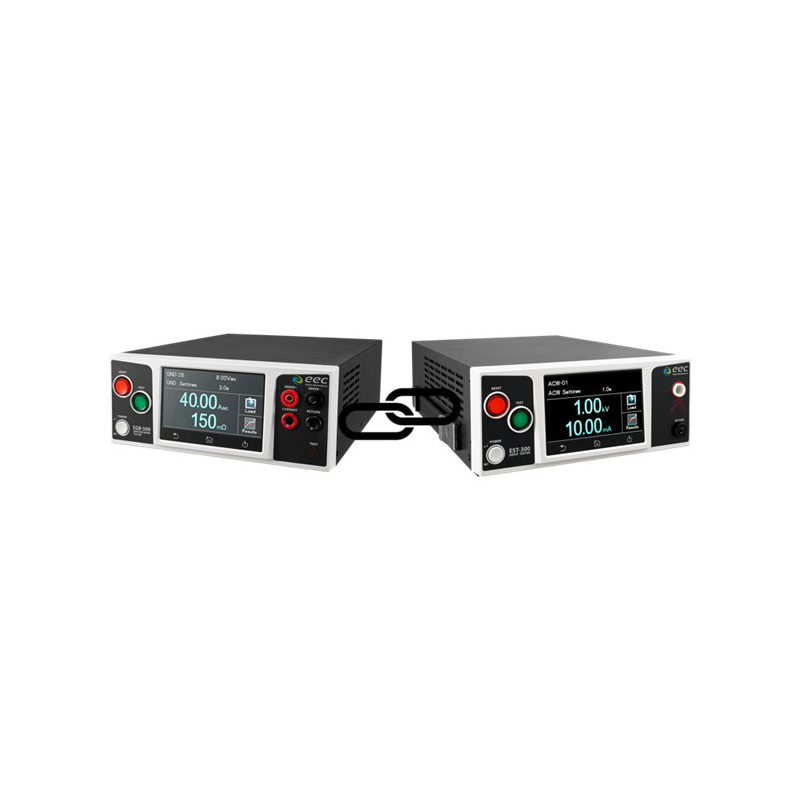

單項測試/完整系統靈活運用可輕松與EST-300系列耐壓測試器連結，整合成完整的交直流耐壓、絕緣阻抗及交直流接地阻抗多功能測試系統；也可獨立進行測試，最大化運用彈性。 |  |
支持介面
| |
RS-232介面
MODEL | EGB-324 |
INPUT | |
Voltage | 100 - 120Vac / 200 - 240Vac±10% Auto Range |
Frequency | 50/60Hz ± 5% |
Fuse | 10A / 250Vac Slow-Blow |
Apparent Power | 950VA |
GROUND BOND | |
Output Current Range | 1.00 – 40.00 A ac/dc |
Resolution | 0.01 A |
Accuracy | ± (2 % of setting + 0.15% F.S.) |
Output Maximum Voltage (Open Circuit) | 3.00 – 8.00 V ac/dc |
Resolution | 0.01 V |
Accuracy | ± (2 % of setting + 0.5% F.S.) |
Output Frequency, Hz | 50Hz/60Hz ± 0.1%, User Selectable (AC mode) |
Maximum Loading | 1.00–10.00A/0–600mΩ,10.01–30.00A/0–200mΩ,30.01–40.00A/0–150mΩ |
SETTINGS | |
Resistance Offset Range | 0-100 mΩ |
Resolution | 1 mΩ |
Max and Min-Limit Resistance Range | 0 – 150 mΩ (30.01-40.00A) |
0 – 200 mΩ (10.01-30.00A) | |
0 – 600 mΩ (1.00-10.00A) | |
Resolution | 1 mΩ |
Fix Ramp Time | 0.1 s |
Dwell Time, second | 0, 0.5 - 999.9 s (0 = continuous) |
Resolution | 0.1 s |
Accuracy | ± 0.1% of setting |
Voltage Offset Range | 0.00 - 4.50 V |
Resolution | 0.01 V |
HI / LO-Limit Voltage Range | 0.00 - 6.75 V |
Resolution | 0.01 V |
MEASUREMENT | |
Measurement Current Range | 0.00 - 40.00 A ac/dc |
Resolution | 0.01 A |
Accuracy | ± (2% of reading +0.5% F.S.) |
Resistance Range | 0 - 600 mΩ |
Resolution | 1 mΩ |
Accuracy | ± (2 % of reading + 0.5% F.S.) for 1 - 5.99A, ± (1.5 % of reading + 0.5% F.S.) for 6 - 40A |
Measurement Voltage Range | 0.00 - 8.00 V ac/dc |
Resolution | 0.01 V |
Accuracy | ± (2 % of reading + 0.5% F.S.) |
USER INTERFACE | |
PLC Remote Control | Input : Test, Reset, Withstand Processing , Memory1, 2, 3, Interlock Output : Pass, Fail, Processing, Reset-Out |
Interface | USB (B-Type) |
Memory | 30 Steps (1 File/30 Steps, 30 File/1 Step ) |
Display | 4.3 inch Color TFT with capacitive touch screen |
Alarm Volume Setting | Range: 0-9 ;0=OFF, 1 is softest volume, 9 is loudest volume. |
GENERAL | |
Language | English, T Chinese, S Chinese |
Hipot Linking | EGB-324 can link with EST-300 series (EGB-324 is the master) |
Verification | Change the Verification name to FailCHEK on LCD display. |
Lock | Screen lock |
Environment | 0-40℃, 20-80%RH |
Dimension | 215mm(W) ×88.1mm(H) × 300 mm(D) |
Weight | 5Kg |
STANDARD ACCESSORIES | |
Power Cord(10A) | ×1 |
Fuses | ×2 (Including a spare contained in the fuse holder) |
Interlock Disable Key(New) | ×1 |
Ground Bond Current Test Lead(1-1137) | ×1 |
Ground Bond Return Test Lead(1-1138) | x1 |
